KTM

Erzbergrodeo

Specifications

Product

KTM 300 XC-W ErzbergRodeo Bike

Model Year

2023

Engine Size

Other

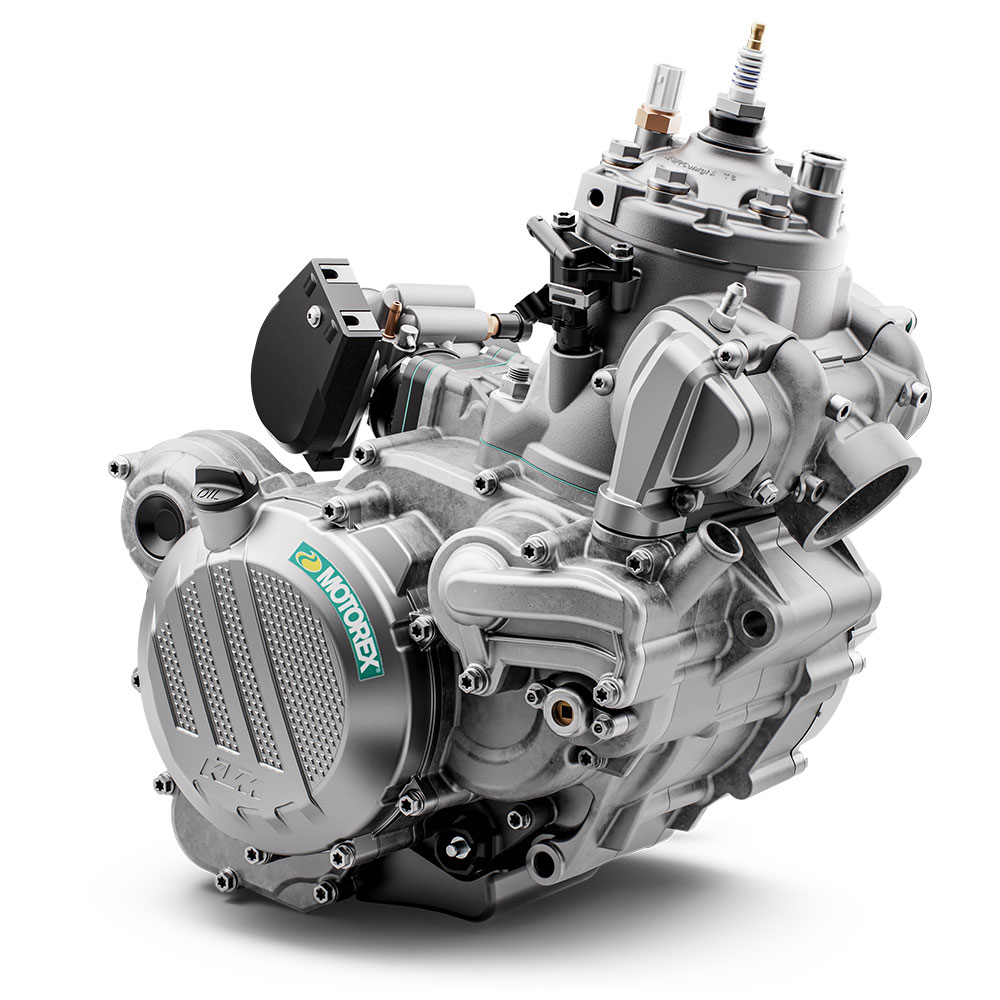

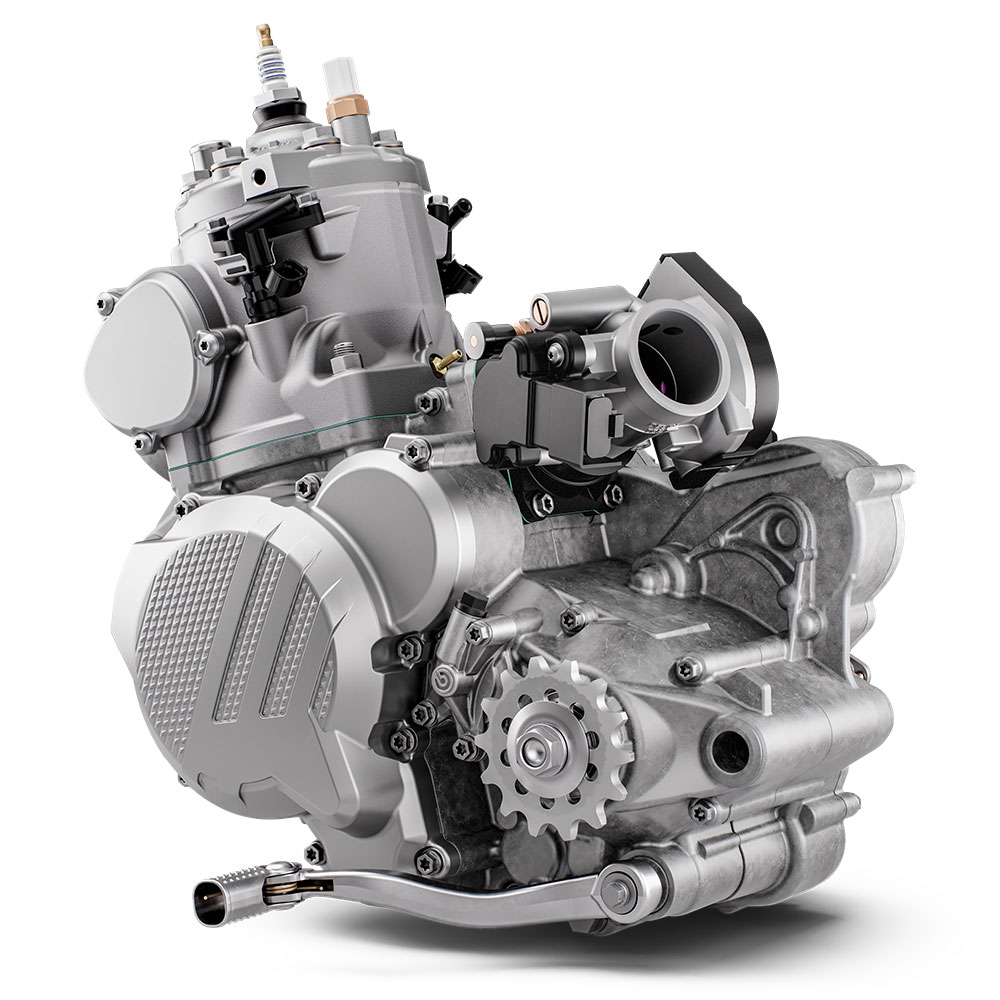

Engine Type

Two-Stroke

Engine Displacement

293.2cc

Bore x Stroke

72 mm x 72 mm

Compression Ratio

Fuel System

TPI fuel injection technology, Dell'Orto 39 mm throttle body, reed intake

Ignition

Continental EMS located beneath seat; electric starter, 2 Ah lithium-ion battery under seat

Transmission

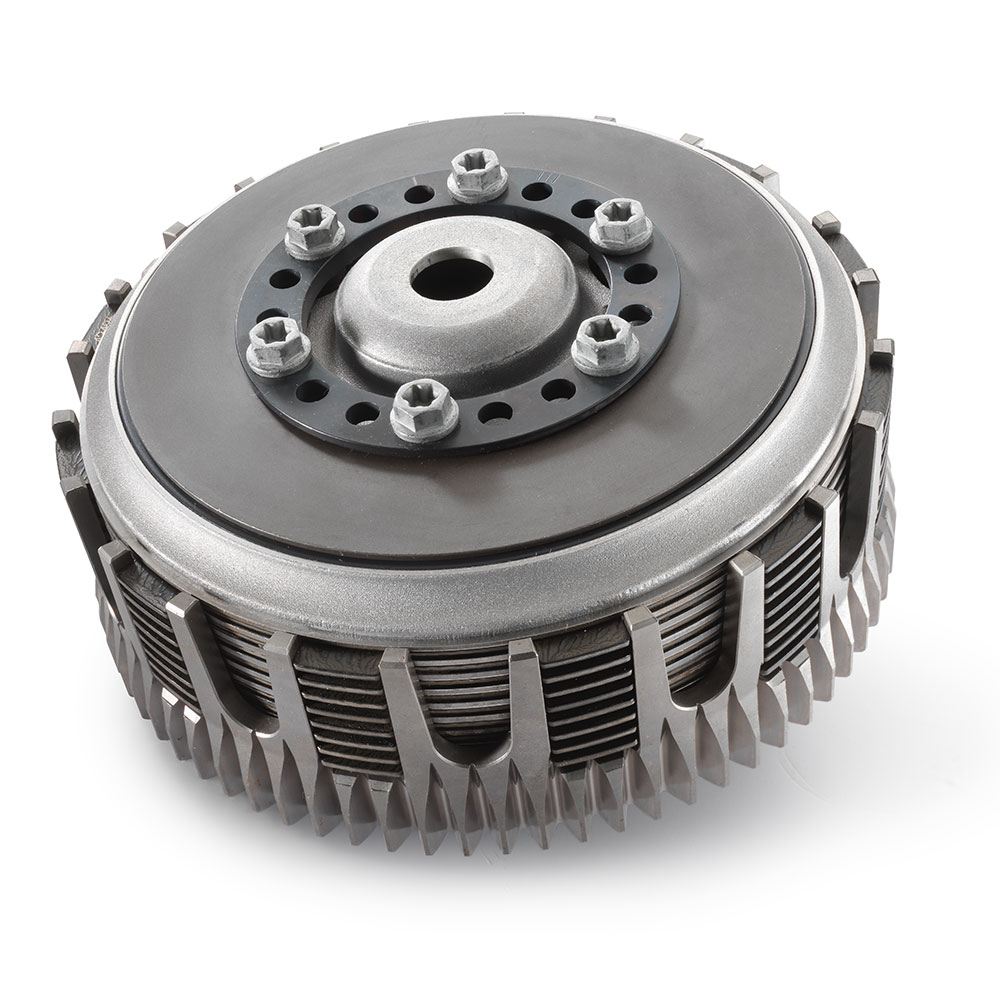

Pankl Racing Systems 6-speed; wet DDS (Damped Diaphragm Steel) multi-disc clutch, single steel pressure plate instead of traditional coil springs, steel clutch basket, Brembo hydraulics

Final Drive

Chain, X-Ring, 5/8 x 1/4"

Suspension Front

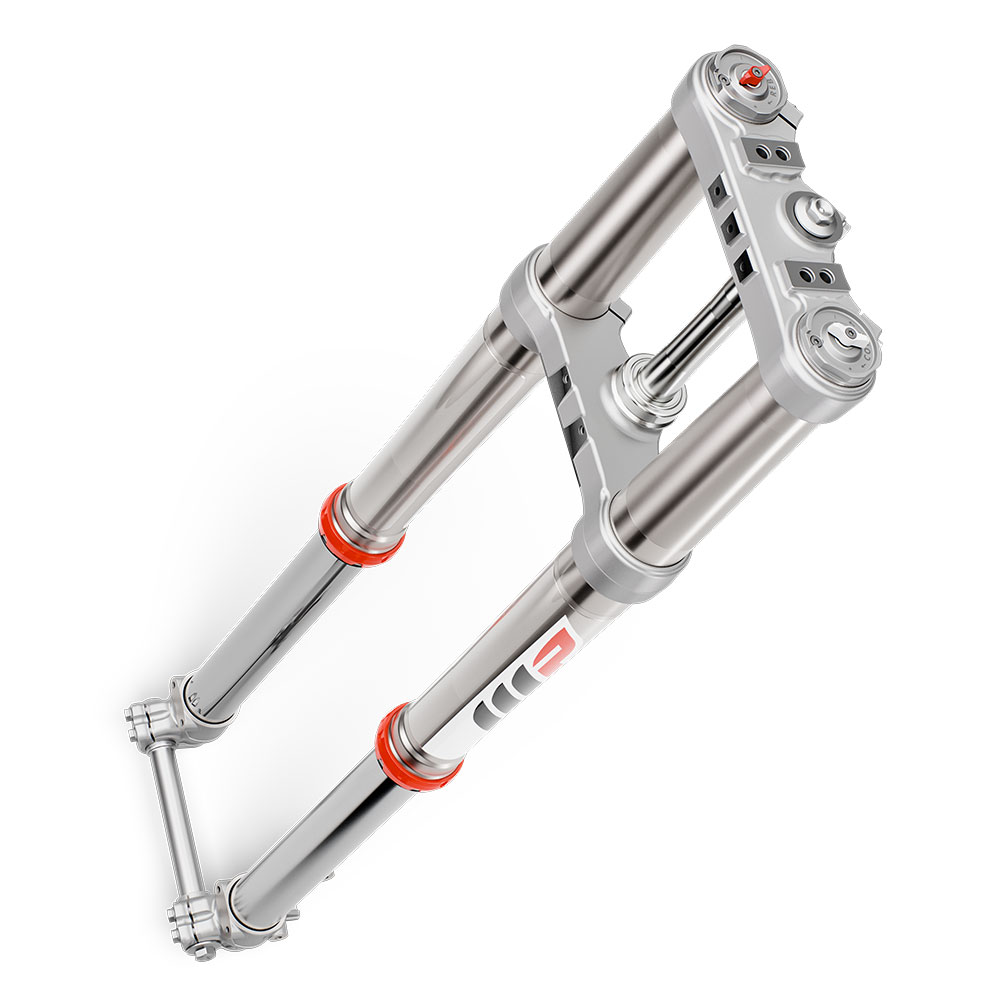

WP XPLOR-USD, compression adjust, rebound adjust, forged triple clamps with 22mm offset, 48 mm diameter, 300 mm (11.81") travel

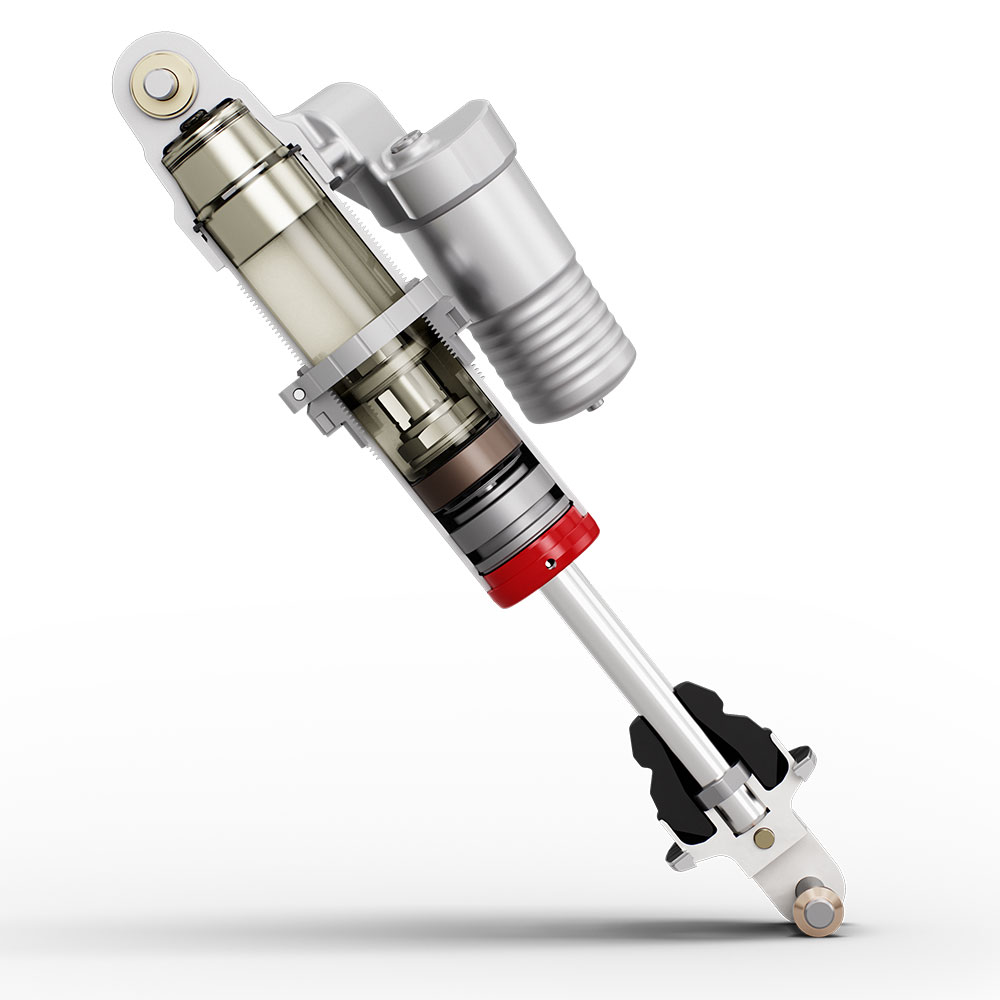

Suspension Rear

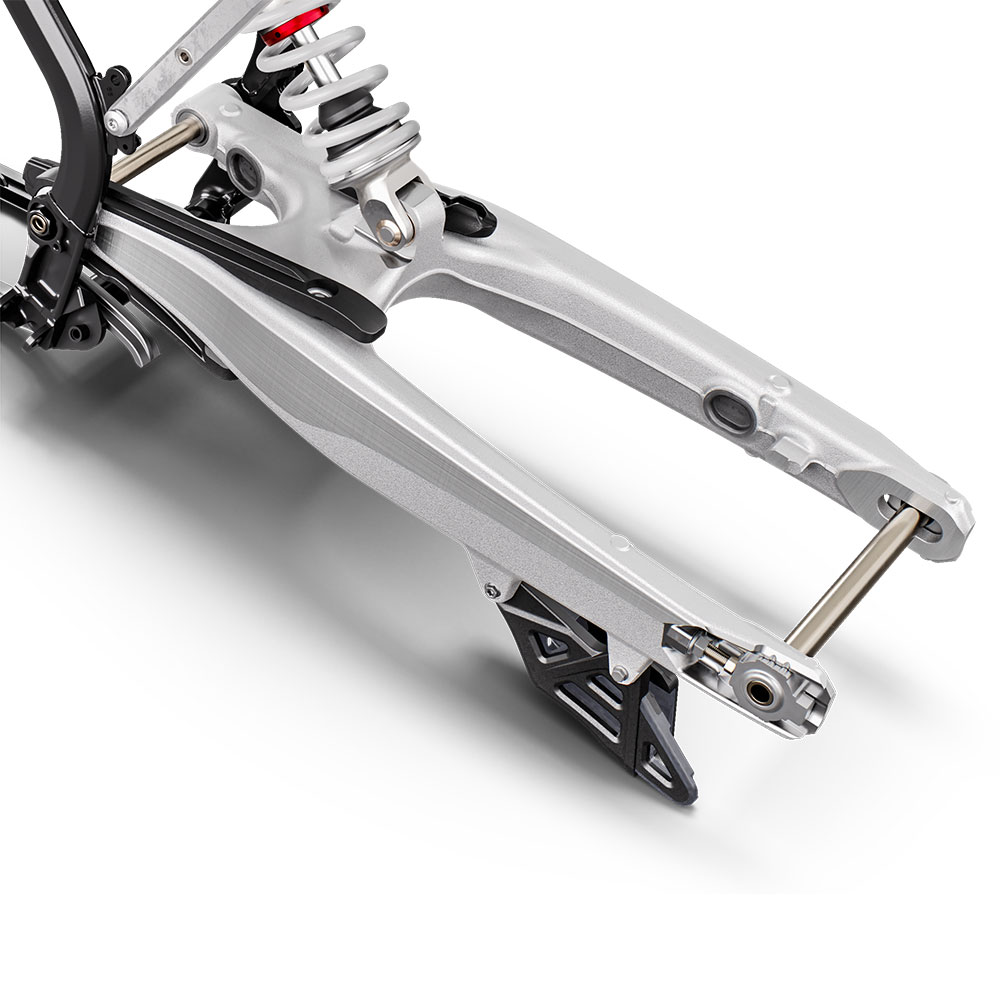

WP XPLOR PDS, 310 mm (12.2") travel

Brakes Front

Brembo disc, 260 mm wave rotor with disc guard

Brakes Rear

Brembo disc, 220 mm wave rotor with disc guard

Tires Front

Dunlap Geomax MX33, 1.60-21"

Tires Rear

Dunlap Geomax AT81, 2.15-19"

Overall Length

Overall Width

Overall Height

Seat Height

950 mm (37.4")

Wheelbase

1482 mm (58.3")

Ground Clearance

370 mm (14.6")

Rake/Trail

26.5°

Fuel Capacity

8.5 liters (2.25 gallons)

Curb Weight

103.9 kg (229 lbs) without fuel

Features

• Frame-mounted oil tank and oil pump that delivers lubricant directly to throttle body negates need to premix fuel and oil
• 196 W alternator and voltage regulator

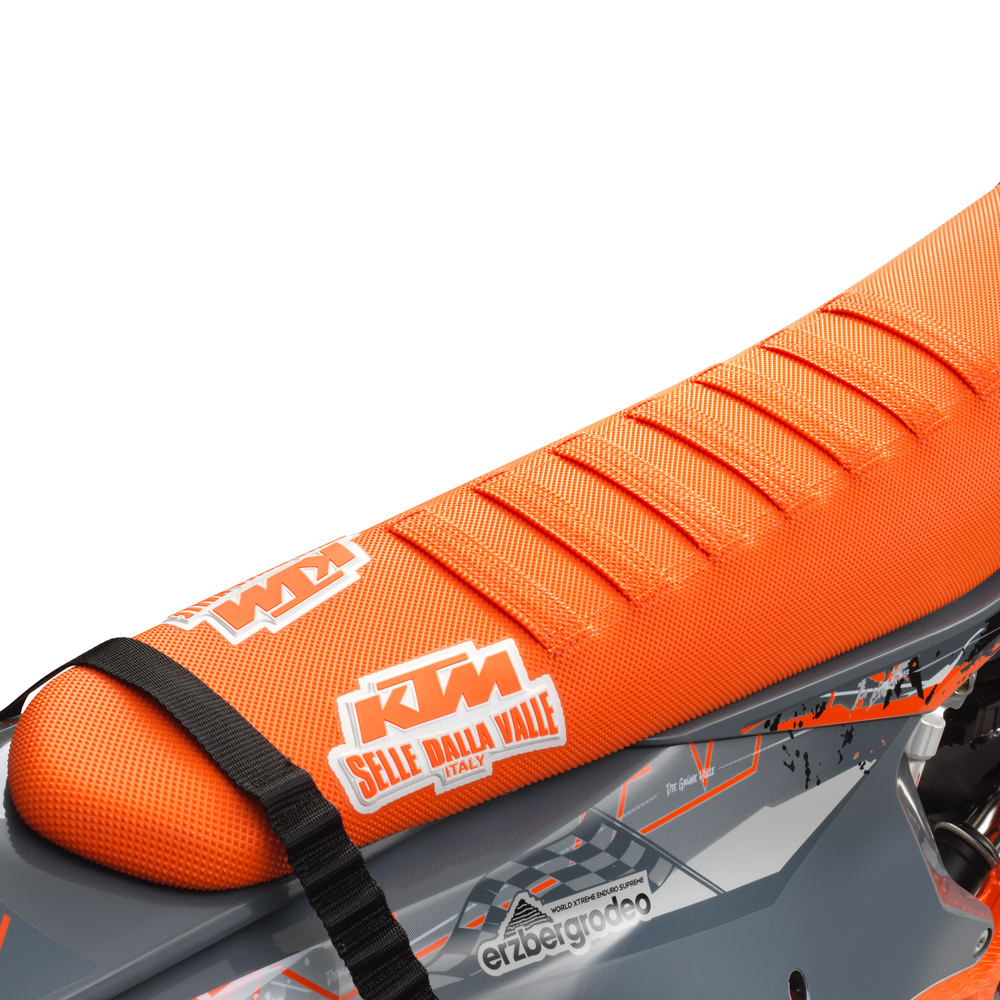

• ErzbergRodeo edition features anodized orange hubs, Selle Dalla Valle seat, front/rear disc guards, and commemorative graphics set

Miscellaneous

• Frame-mounted oil tank and oil pump that delivers lubricant directly to throttle body negates need to premix fuel and oil
• 196 W alternator and voltage regulator

Price

$12,649.00
